Sandvik Coromant

TAP FLUTE SPL RH 1/8-28 SEMI-BOTMG RH 3

tap flute spl rh 1/8-28 semi-botmg rh 3

Stellar Part #SANCO 6635226

MFG Part #6635226

MFG Name:Sandvik Coromant

Product Description:

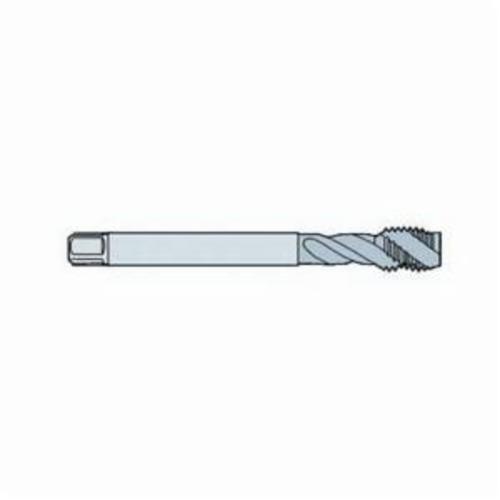

Sandvik Coromant 6635226 CoroTap 300 T300-XM100DK Spiral Flute Tap, Right Hand Cutting, 1/8-28 Thread, Semi-Bottoming Chamfer, Right Hand Flute Direction, 3 Flutes, PVD Coated, HSS-PM

Technical Specifications

Chamfer Type:

Semi-Bottoming

Class of Fit:

Normal

Cutting Direction:

Right Hand

Finish/Coating:

PVD Coated

Flute Direction:

Right Hand

Material:

HSS-PM

Material Application:

Cast Iron, Stainless Steel, Steel, Alloy and Non-Ferrous Materials

Measurement System:

Imperial

Number of Flutes:

Overall Length:

3.5433 in

Series:

CoroTap™ 300 T300-XM100DK

Shank Diameter:

0.2755 in

Thread Length:

0.5118 in

Thread Size:

1/8-28

Thread Standard:

BSPP/G

Through Coolant (Yes/No):

: Chamfer Type:
Semi-Bottoming
Class of Fit:
Normal
Cutting Direction:
Right Hand
Finish/Coating:
PVD Coated
Flute Direction:
Right Hand
Material:
HSS-PM
Material Application:
Cast Iron, Stainless Steel, Steel, Alloy and Non-Ferrous Materials
Measurement System:
Imperial
Number of Flutes:
3
Overall Length:
3.5433 in
Series:
CoroTap™ 300 T300-XM100DK
Shank Diameter:
0.2755 in
Thread Length:
0.5118 in
Thread Size:
1/8-28
Thread Standard:
BSPP/G
Through Coolant (Yes/No):
No
