INSERT TURN CNMG P 433 RHOMB 12 NEG NEUT

insert turn cnmg p 433 rhomb 12 neg neut

Stellar Part #SANCO 7080938

MFG Part #7080938

MFG Name:Sandvik Coromant

Product Description:

Sandvik Coromant 7080938 T-Max P Turning Insert, ANSI Code: CNMG 433-MF 4335, CNMG Insert, Material Grade: P, 433 Insert, Rhombic Shape, 12 Seat, Negative Rake, Neutral Cutting, For Use On Steel, Carbide, Manufacturers Grade: 4335

UOM:

Technical Specifications
Resources

ANSI Code:

CNMG 433-MF 4335

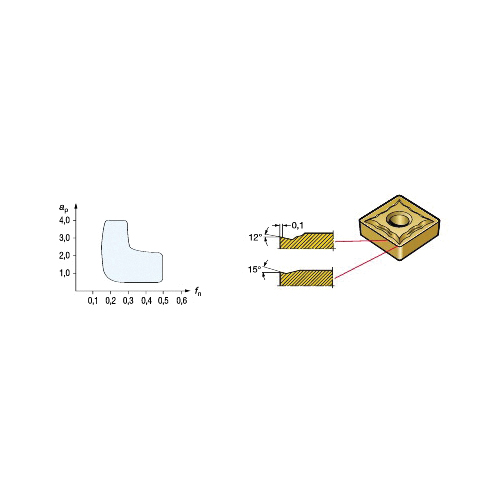

Chipbreaker:

Corner Radius:

0.047 in

Cutting Direction:

Neutral

Finish:

CVD-TiCN+Al2O3+TiN Coated

For Use On:

Steel

Hole Diameter:

0.203 in

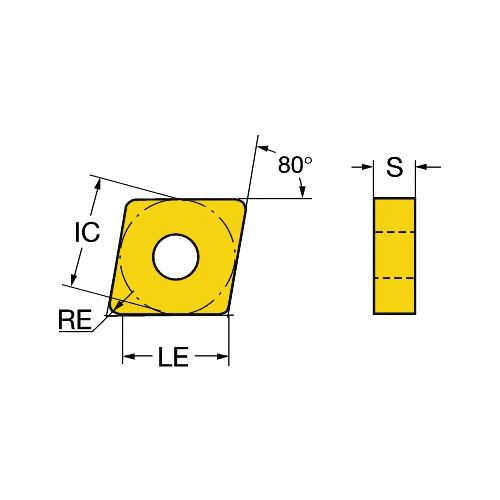

Included Angle:

80 deg

Inscribed Circle:

1/2 in

Insert Size:

433

Insert Style:

CNMG

ISO Code:

CNMG 12 04 12-MF 4335

Manufacturer's Grade:

4335

Material:

Carbide

Material Grade:

Maximum Depth of Cut:

0.157 in

Rake:

Negative

Relief Angle:

0 deg

Seat Size:

Series:

T-Max® P

Shape:

Rhombic

Thickness:

0.187 in

: ANSI Code:
CNMG 433-MF 4335
Chipbreaker:
MF
Corner Radius:
0.047 in
Cutting Direction:
Neutral
Finish:
CVD-TiCN+Al2O3+TiN Coated
For Use On:
Steel
Hole Diameter:
0.203 in
Included Angle:
80 deg
Inscribed Circle:
1/2 in
Insert Size:
433
Insert Style:
CNMG
ISO Code:
CNMG 12 04 12-MF 4335
Manufacturer's Grade:
4335
Material:
Carbide
Material Grade:
P
Maximum Depth of Cut:
0.157 in
Rake:
Negative
Relief Angle:
0 deg
Seat Size:
12
Series:
T-Max® P
Shape:
Rhombic
Thickness:
0.187 in
