Sandvik Coromant

INSERT MILLING R245..E-W 12T3 CARBIDE N

insert milling r245..e-w 12t3 carbide n

Stellar Part #SANCO 5743862

MFG Part #5743862

MFG Name:Sandvik Coromant

Product Description:

Sandvik Coromant 5743862 CoroMill 245 Milling insert, R245..E-W Insert, 12T3 Insert, Carbide, Manufacturers Grade: CD10, Squared Shape, Material Grade: N

UOM:

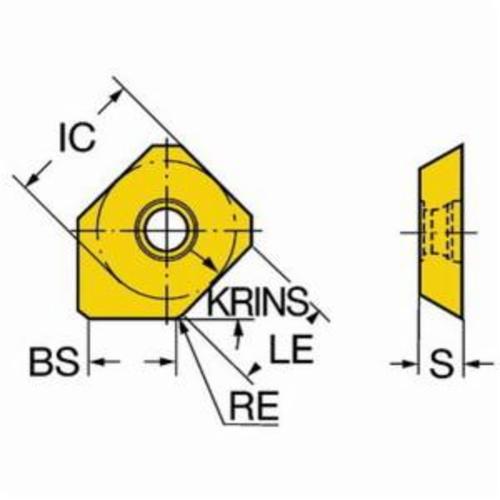

Technical Specifications

Chipbreaker:

Corner Radius:

0.059 in

Finish:

Uncoated

Hand of Insert:

Right

Hole Diameter:

0.1614 in

Inscribed Circle:

0.528 in

Insert Size:

12T3

Insert Style:

R245..E-W

ISO Code:

R245-12 T3 E-W CD10

Lead Angle:

45 deg

Length:

0.528 in

Manufacturer's Grade:

CD10

Material:

Carbide

Material Application:

Non-Ferrous Metals

Material Grade:

Series:

CoroMill® 245

Shape:

Squared

Thickness:

0.156 in

Width:

0.528 in

: Chipbreaker:
W
Corner Radius:
0.059 in
Finish:
Uncoated
Hand of Insert:
Right
Hole Diameter:
0.1614 in
Inscribed Circle:
0.528 in
Insert Size:
12T3
Insert Style:
R245..E-W
ISO Code:
R245-12 T3 E-W CD10
Lead Angle:
45 deg
Length:
0.528 in
Manufacturer's Grade:
CD10
Material:
Carbide
Material Application:
Non-Ferrous Metals
Material Grade:
N
Series:
CoroMill® 245
Shape:
Squared
Thickness:
0.156 in
Width:
0.528 in
